树莓派上传数据至阿里云

阿里云

树莓派

发布日期: 2021-03-15

更新日期: 2021-03-22

文章字数: 575

一. 创建模型

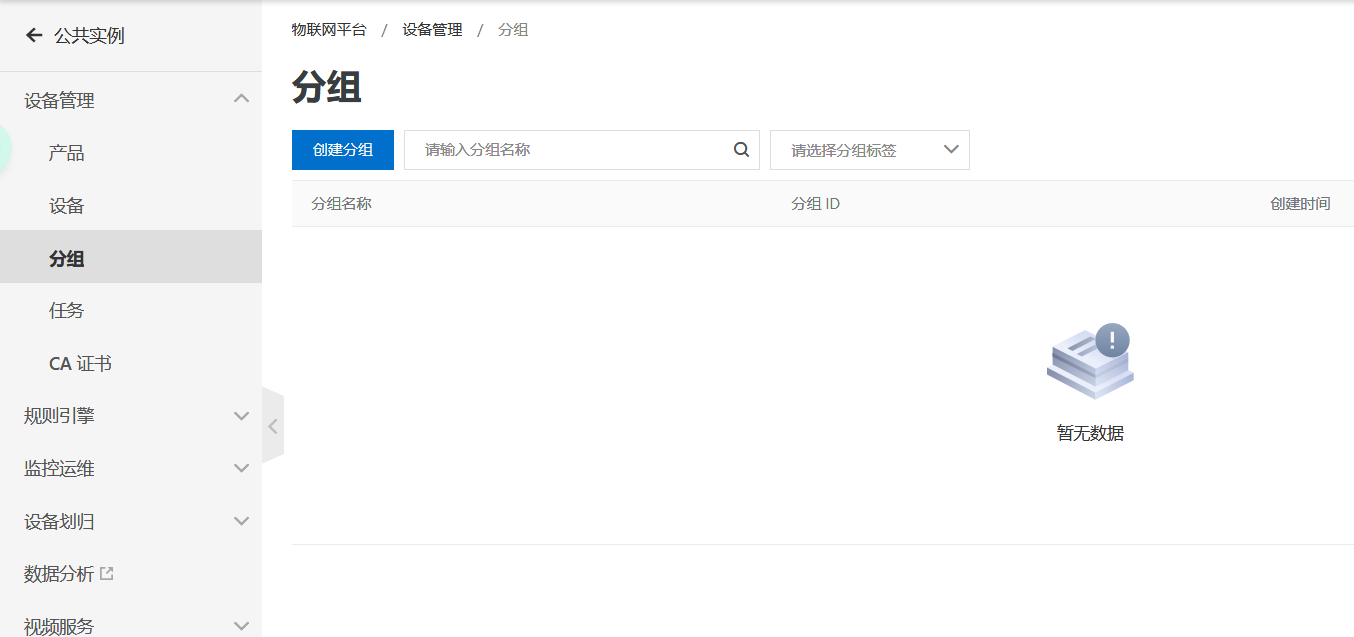

进入阿里云物联网平台
点击“ 产品”
创建产品, 名称随意, 所属品类:自定义类型, 其他看情况, 确定.

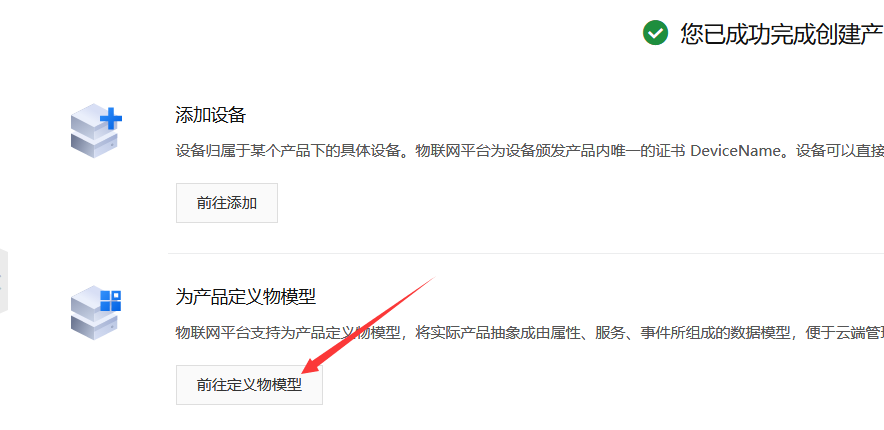

创建物模型

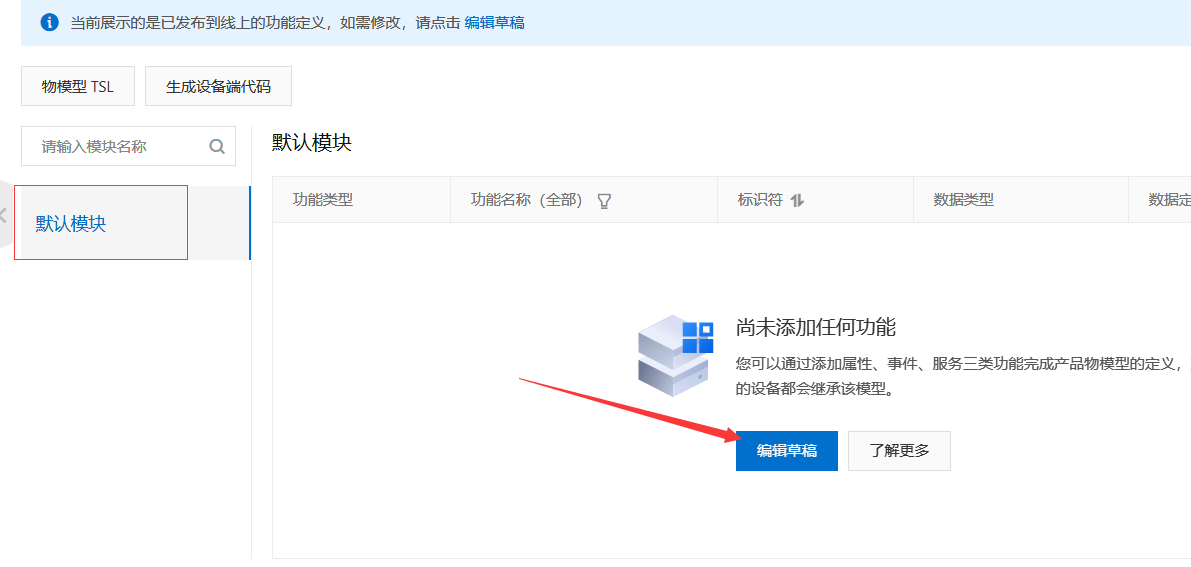

编辑草稿, 创建物模型

添加自定义功能, 根据情况设置上传信息格式, 记着标识符

发布上线

二. 创建设备

产品与设备的关系: 产品是模板, 设备是按照产品生产出来的; 产品具有的功能, 设备也有.

创建设备

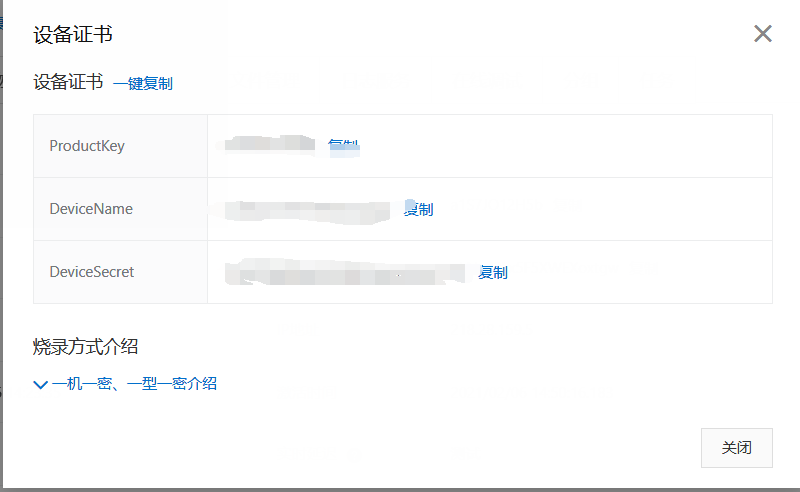

获取设备证书

保存设备证书

三. 客户端设置

创建python文件

# -*- coding: utf-8 -*-
import paho.mqtt.client as mqtt
import time
import hashlib
import hmac
import random
import json

# 这个就是我们在阿里云注册产品和设备时的三元组啦
# 把我们自己对应的三元组填进去即可
options = {
    'productKey': 'XXXXXXXX',
    'deviceName': 'XXXXXXX',
    'deviceSecret': 'XXXXXXX',
    'regionId': 'cn-shanghai'  #看情况
}

HOST = options['productKey'] + '.iot-as-mqtt.' + options['regionId'] + '.aliyuncs.com'
PORT = 1883
PUB_TOPIC = "/sys/" + options['productKey'] + "/" + options['deviceName'] + "/thing/event/property/post";


# The callback for when the client receives a CONNACK response from the server.
def on_connect(client, userdata, flags, rc):
    print("Connected with result code " + str(rc))
    # client.subscribe("the/topic")


# The callback for when a PUBLISH message is received from the server.
def on_message(client, userdata, msg):
    print(msg.topic + " " + str(msg.payload))


def hmacsha1(key, msg):
    return hmac.new(key.encode(), msg.encode(), hashlib.sha1).hexdigest()


def getAliyunIoTClient():
    timestamp = str(int(time.time()))
    CLIENT_ID = "paho.py|securemode=3,signmethod=hmacsha1,timestamp=" + timestamp + "|"
    CONTENT_STR_FORMAT = "clientIdpaho.pydeviceName" + options['deviceName'] + "productKey" + options[
        'productKey'] + "timestamp" + timestamp
    # set username/password.
    USER_NAME = options['deviceName'] + "&" + options['productKey']
    PWD = hmacsha1(options['deviceSecret'], CONTENT_STR_FORMAT)
    client = mqtt.Client(client_id=CLIENT_ID, clean_session=False)
    client.username_pw_set(USER_NAME, PWD)
    return client

if __name__ == '__main__':

        client = getAliyunIoTClient()
        client.on_connect = on_connect
        client.on_message = on_message
        client.connect(HOST, 1883)
        #开启连接线程
        client.loop_start()  # client.loop_stop() 停止线程

        #循环上报数据
        while True:
            payload_json = {

                    'id': int(time.time()),
                    'params': {
                        'zfx:Har': har,  # 随机温度
                        'zfx:Mar': mar,  # 随机相对湿度
                        'zfx:Ear': ear,
                        'zfx:DriveWarning': 1
                    },
                    'method': "thing.event.property.post"
                }
                print('send data to iot server: ' + str(payload_json))
                client.publish(PUB_TOPIC, payload=str(payload_json), qos=1)
                time.sleep(0.15)

params设置问题

 #若是默认模块, 各标识符前不加模块的标识符, 若是创建新的模块, 那么需要加上模块标识符
    例:

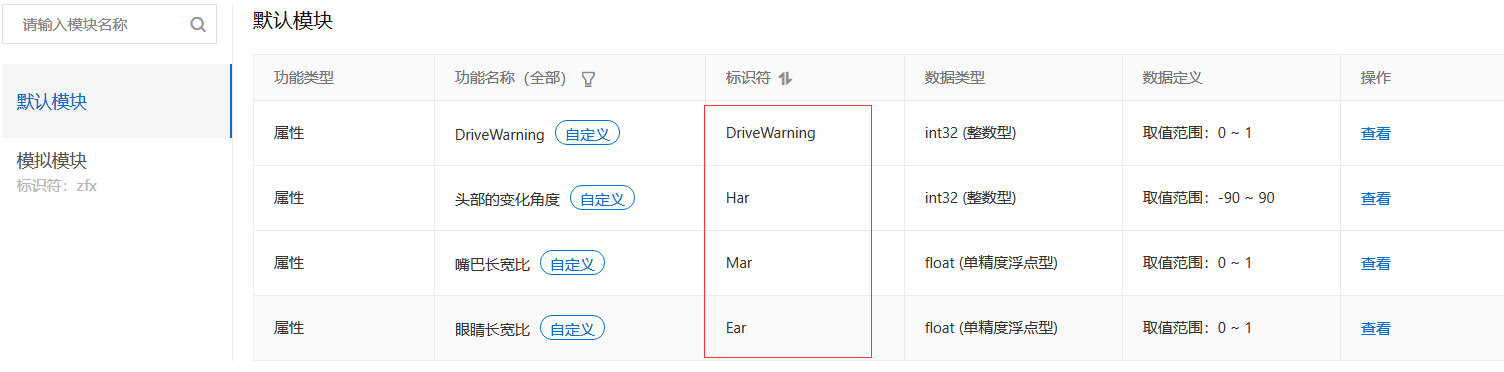

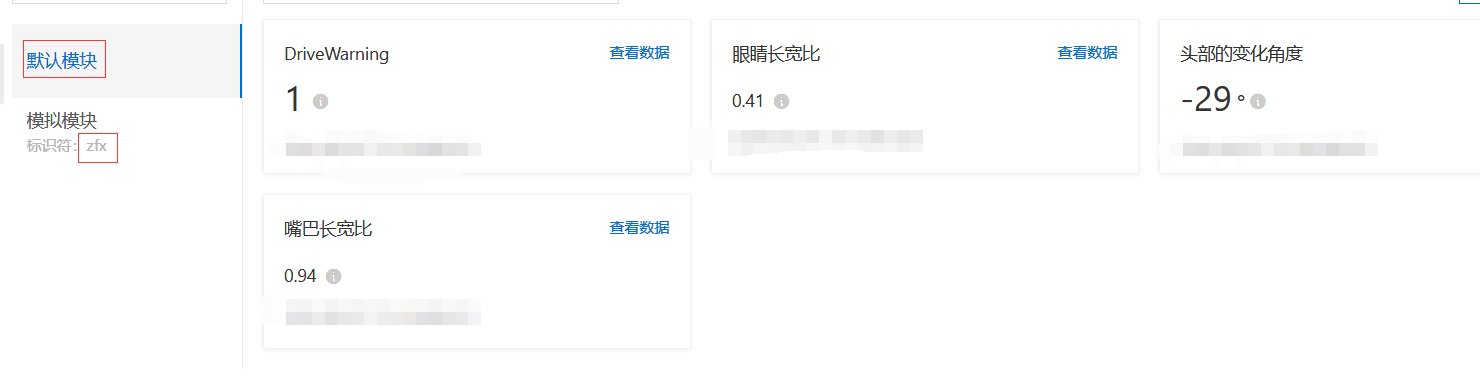

        图中两个模块配置一样
        若是默认模块:
        'params': {
            'Har': har,  # 随机温度
            'Mar': mar,  # 随机相对湿度
            'Ear': ear,
            'DriveWarning': 1
        },
        若是自定义模块   标识符为:zfx
            'params': {
            'zfx:Har': har,  # 随机温度
            'zfx:Mar': mar,  # 随机相对湿度
            'zfx:Ear': ear,
            'zfx:DriveWarning': 1
        },
